Heyco Products, Inc. stock list

connectorsTransformer & other

Heyco Products, Inc. stock list

Lockit Strain Relief Bushings

ST-101N
Snap onto Round Cables, Standard color black, Material:Nylon 6/6
DESC. Wil fit these cables Panel Mounting Hole Size (mm) Panel Thickness (mm)
UL type AWG/Conductors Approximate Size(mm)
ST-101N SV、SVT 18/2 5.6-6.2 11.5×13.0 0.8
1.0
1.2
1.6
2.5
18/2 3.0×5.6
18/2 3.0×5.6
SPT-1 18/2 3.0×5.6
SPT-1 18/2 3.0×5.6

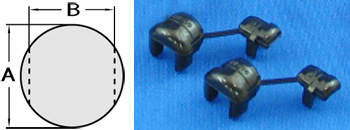

Original Strain Relief Bushings

heyco SR
Straight-Thru for Flat Cables, Standard color black, Material:Nylon 6/6
DESC. Wil fit these cables A Mounting Hole Dia. (mm) B Prevent Rotation (mm) Finished Fit Panel Thickness (mm)
UL type AWG/Conductors Approximate Size(mm)
SR-4P-4 SPT-1 18/2 3.0×5.6 12.7 11.3 2.5
SR-4N-4 SPT-1
HPN
18/3
18/2
3.0×7.6
3.8×7.1
12.7 11.8 1.6
SR-4K-4 SPT-1
HPN
18/3
18/2
3.0×7.6
3.8×7.1
12.7 11.8 2.5
SR-4K-1 SPT-1 18/3 3.0×7.6 12.7 11.7 2.4
SPT-2
&HPN
18/2 3.8×7.1
HPN 18/3 3.8×8.6 12.7-13.1
SPT-2
&HPN
16/2 4.1×7.6

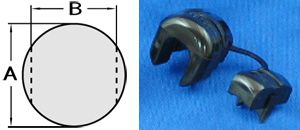

Original Strain Relief Bushings

heyco SR
Straight-Thru for Round Cables, Standard color black, Material:Nylon 6/6
DESC. Wil fit these cables A Mounting Hole Dia. (mm) B Prevent Rotation (mm) Finished Fit Panel Thickness (mm)
UL type AWG/Conductors Approximate Size(mm)
SR-5M-3 SV
&SVT
18/2 5.6
6.2
12.7 11.4 2.5
SR-5N-4 SV
&SVT
18/2 6.4 12.7 11.4 1.6
18/3 6.5 12.7
13.1
HPD 18/2 6.9 12.7
16/2 7.4 12.7
13.1
SR-5P-4 SV
&SVT
18/2 6.4 12.7 11.4 2.5
18/3 6.5 12.7
13.1
HPD 18/2 6.9 12.7
16/2 7.4 12.7
13.1
SR-5P3-4 SV
&SVT
18/3 6.5 12.7 11.4 2.5
HPD 16/2 7.4
SR-6W-1 SJ、SJT
&SJO
18/2 7.6 12.7 11.8 2.3
SR-6N-4 SJ、SJT
&SJO
18/2 7.6 15.9 14 1.6
SR-6N3-4 SJ、SJT
&SJO
16/2
18/3
14/2
16/3
18/4
8.3
8.4
8.9
9.0
9.1
15.9 14 1.6
SR-6L-1 SJ、SJT
&SJO
18/2
16/2
18/3
16/3
7.6
8.3
8.4
9.0
15.9
16.7
16.7
17.4
14 4.0
SR-7P-2 SJT 18/4
14/3
9.1
9.4
19.0 16.8 3.2
S
&ST
18/2
18/3
16/2
9.9
10.3
10.3
16/3 10.9 19.0-19.8
SR-8P-2 S
&ST
14/2
14/3
12/2
13.5
14.2
15.3
22.2 21.3 3.2

Original Strain Relief Bushings

heyco SR-4N-5
Bell-Mouth for Flat and Round Cables. Standard color black, Material:Nylon 6/6
DESC. Wil fit these cables A Mounting Hole Dia. (mm) B Prevent Rotation (mm) Finished Fit Panel Thickness (mm)
UL type AWG/Conductors Approximate Size(mm)
SR-4N-5 SPT-1 18/3 3.0×7.6 12.7 11.8 1.6
SPT-2
&HPN
18/2 3.8×7.1 12.7
16/2 4.1×7.6 12.7
13.1

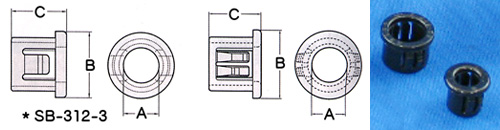

Snap Bushings

heyco SB
Standard color black, Material:Nylon 6/6
DESC. Finished Fit Panel Thickness (mm) MOUNTING HOLE DIAMETER (mm) A Inside Diameter (mm) B Head Diameter (mm) C Overall Height (mm)
SB-312-3 * 1.6 7.9 4.8 9.5 7.9
SB-375-4 3.2 9.5 6.4 11.9 10.3

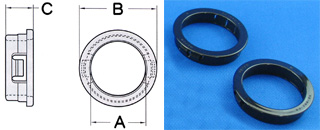

Shorty Bushings

heyco B
Standard color black, Material:Nylon 6/6
DESC. Finished Fit Panel Thickness (mm) MOUNTING HOLE DIAMETER (mm) A Inside Diameter (mm) B Head Diameter (mm) C Overall Height (mm)
B-312-250 1.6 7.9 6.3 9.5 5.9
B-531-406 1.6 13.5 10.3 15.1 6.4
B-875-750 1.6 22.2 19.0 23.8 6.4

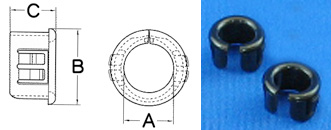

Open/Closed Bushings

heyco OCB
Standard color black, Material:Nylon 6/6
DESC. Finished Fit Panel Thickness (mm) MOUNTING HOLE DIAMETER (mm) A Inside Diameter (mm) B Head Diameter (mm) C Overall Height (mm)
OCB-375 3.2 9.5 6.7 10.7 9.9
OCB-500 3.2 12.7 7.9 14.3 10.3

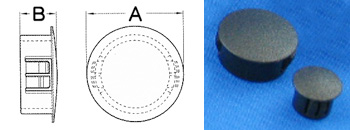

Dome Plugs

heyco DP
Standard color black, Material:Nylon 6/6
DESC. Finished Fit Panel Thickness (mm) MOUNTING HOLE DIAMETER (mm) A Head Diameter (mm) B Overall Height (mm)
DP-312 1.6 7.9 9.5 7.9
DP-375 3.2 9.5 11.9 10.3
DP-500 3.2 12.7 14.7 10.3
DP-625 3.2 15.9 18.2 10.3
DP-687 3.2 17.4 19.8 10.3
DP-812 3.2 20.6 22.6 10.3
DP-875 3.2 22.2 25.8 11.5
DP-1500 3.2 38.1 42.4 11.5
DP-1750 3.2 44.5 48.4 11.5

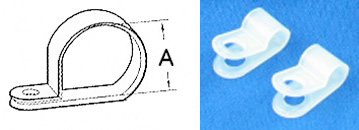

Nylon Cable Clamps

heyco 3303
PART NO. MOUNTING HOLE DIAMETER (mm) SCREW SIZE PART DIMENSION A (mm)
Light Duty - 3/8" (9.5 mm) Wide, .05" (1.3 mm) Thick, Standard colors natural. Material:Nylon 6/6
3303 5.2 10 4.7
PART NO. MOUNTING HOLE DIAMETER (mm) SCREW SIZE PART DIMENSION A (mm)
Heavy Duty - 1/2" (12.7 mm) Wide, .06" (1.5 mm) Thick. Standard colors natural. Material:Nylon 6/6
3332 5.2 10 19.1

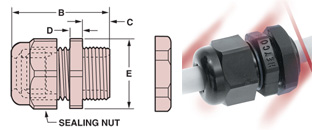

Liquid Tight Cordgrips Straight-Thru

heyco 3208
Standard colors gray. Material:Nylon 6/6
PART NO. CABLE DIA. RANGE PART DIMENSIONS
Minimum (mm) Maximum (mm) A Clearance Hole Dia. (mm) B Max. O.A. Length (mm) C Thread Length (mm) D Wrenching Nut Thickness (mm) D Wrenching Nut Flat Size (mm)
3208 2.9 6.4 12.5 29.7 8.4 5.1 15.0

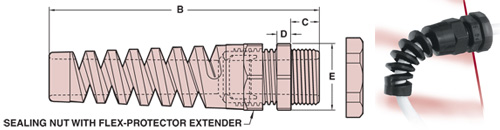

Liquid Tight Cordgrips Pigtail

heyco 3237
Standard colors black. Material:Nylon 6/6
PART NO. CABLE DIA. RANGE PART DIMENSIONS
Minimum (mm) Maximum (mm) A Clearance Hole Dia. (mm) B Max. O.A. Length (mm) C Thread Length (mm) D Wrenching Nut Thickness (mm) D Wrenching Nut Flat Size (mm)
3237 2.9 6.4 12.5 62.0 8.4 5.1 15.0

Universal Bushings

heyco UB
Standard colors black. Material:Nylon 6/6
DESC. Finished Fit Panel Thickness (mm) MOUNTING HOLE DIAMETERs (mm) Maximum Inside Diameter (mm) Head Diameter (mm) Overall Height (mm)
UB-625 3.2 15.9 11.1 18.3 10.3
UB-1093 3.2 27.8 20.6 29.4 11.5

Please inquire for the delivery date of the product which is not placed in this list.
